Quantum Database

Quantum Database System (qndb)

Version Status License Python Cirq Build Status Coverage Documentation

📄 Documentation Incomplete 😩

(This is experimental project)Keeping up with documentation is exhausting, and it's not fully complete. If you want to help, feel free to contribute! Any improvements are welcome. 🚀

Executive Summary

The Quantum Database System represents a paradigm shift in database technology by leveraging quantum computing principles to achieve unprecedented performance in database operations. While classical databases have evolved significantly over decades, they face fundamental limitations in processing large datasets. Our system harnesses the power of quantum phenomena such as superposition and entanglement to provide exponential speedups for critical database operations, particularly search and join functions.

This project bridges the theoretical potential of quantum algorithms with practical database implementation, providing a framework that supports both quantum simulation and integration with real quantum hardware. The system offers a SQL-like query language, comprehensive security features, and distributed computing capabilities while maintaining compatibility with classical systems through a sophisticated middleware layer.

The Quantum Database System enables organizations to explore quantum advantage for data-intensive applications while preparing for the quantum computing revolution. As quantum hardware continues to mature, this system provides a forward-looking platform that will scale alongside quantum technology advancements.

Introduction

The Quantum Revolution in Database Management

Database management systems have evolved through multiple generations: from hierarchical and network databases in the 1960s to relational databases in the 1970s, object-oriented databases in the 1980s, and NoSQL systems in the 2000s. Each generation addressed limitations of previous approaches and leveraged emerging computing paradigms. The Quantum Database System represents the next evolutionary leap, harnessing quantum computing to overcome fundamental limitations of classical computing.

Classical databases face performance bottlenecks when dealing with massive datasets, particularly for operations requiring exhaustive search or complex joins. Even with sophisticated indexing and parallel processing, these operations ultimately face the constraints of classical computation. Quantum computing offers a fundamentally different approach by leveraging quantum mechanical phenomena to process multiple possibilities simultaneously.

The most significant breakthroughs enabling quantum databases include:

  1. Grover's Algorithm (1996): Provides quadratic speedup for unstructured search problems
  2. Quantum Walks (2003): Enables efficient exploration of graph structures
  3. Quantum Amplitude Amplification (2000): Enhances the probability of finding desired database states
  4. Quantum Associative Memory (2008): Provides content-addressable memory with quantum advantage
  5. HHL Algorithm (2009): Enables exponential speedup for linear systems of equations

These quantum algorithms, combined with advancements in quantum hardware, create the foundation for a new generation of database systems that can process and analyze data at unprecedented scales.

Project Vision and Philosophy

The Quantum Database System is guided by several core principles:

  1. Bridge Theory and Practice: Translate theoretical quantum algorithms into practical database implementations
  2. Progressive Quantum Advantage: Provide immediate benefits through simulation while scaling with hardware advances
  3. Hybrid Architecture: Seamlessly integrate classical and quantum processing for optimal performance
  4. Open Ecosystem: Build an open, collaborative platform for quantum database research and development
  5. Accessibility: Lower the barrier to entry for organizations exploring quantum computing applications

Our vision is to create a complete database management system that harnesses quantum computational advantages while maintaining the reliability, security, and usability expected from enterprise-grade database systems. We aim to provide a platform that grows alongside the quantum computing ecosystem, enabling increasingly powerful applications as quantum hardware matures.

Target Use Cases

The Quantum Database System is designed to excel in several key scenarios:

  1. Large-Scale Search Operations: Finding specific entries in massive, unstructured datasets
  2. Complex Join Operations: Efficiently combining large tables with multiple join conditions
  3. Pattern Recognition: Identifying patterns or anomalies within complex datasets
  4. Optimization Problems: Solving database-related optimization challenges
  5. Secure Multi-party Computation: Enabling secure distributed computation with quantum cryptography

Specific industry applications include:

Current Development Status

The Quantum Database System is currently in experimental stage (v0.1.0), with the following components implemented:

This version provides a functional framework for experimentation and development, primarily using quantum simulation. While not yet production-ready, it enables organizations to begin exploring quantum database concepts, developing prototypes, and preparing for quantum advantage.

Quantum Computing Fundamentals

Quantum Bits (Qubits)

Unlike classical bits that exist in either 0 or 1 state, qubits can exist in a superposition of both states simultaneously. This fundamental property enables quantum computers to process multiple possibilities in parallel.

Mathematically, a qubit's state is represented as: |ψ⟩ = α|0⟩ + β|1⟩

Where α and β are complex numbers satisfying |α|² + |β|² = 1. When measured, the qubit will collapse to state |0⟩ with probability |α|² or state |1⟩ with probability |β|².

In our database system, qubits serve several critical functions: - Representing data entries through various encoding methods - Implementing quantum algorithms for database operations - Facilitating quantum memory access through QRAM - Enabling quantum cryptographic protocols for security

Superposition and Entanglement

Superposition allows qubits to exist in multiple states simultaneously, dramatically increasing computational capacity. With n qubits, we can represent 2^n states concurrently, enabling exponential parallel processing for suitable algorithms.

Entanglement creates correlations between qubits, where the state of one qubit instantly influences another, regardless of distance. This property enables: - Sophisticated data relationships in quantum databases - Quantum teleportation for distributed database operations - Enhanced security through quantum cryptographic protocols - Novel join operations leveraging entangled states

In our database architecture, we carefully manage entanglement to create powerful computational resources while mitigating the challenges of maintaining quantum coherence.

Quantum Gates and Circuits

Quantum computation is performed through the application of quantum gates - mathematical operations that transform qubit states. Common gates include:

Our database system implements specialized quantum gates optimized for database operations, including custom gates for search amplification, join operations, and data encoding.

Quantum circuits combine these gates into algorithms. The system includes a sophisticated circuit compiler that optimizes gate sequences, minimizes circuit depth, and adapts circuits to specific quantum hardware constraints.

Measurement in Quantum Systems

Quantum measurement collapses superposition states, yielding classical results with probabilities determined by the quantum state. This probabilistic nature is fundamental to quantum computing and has significant implications for database operations:

Our database system implements advanced measurement protocols that maximize information extraction while minimizing the number of required circuit executions.

Quantum Algorithms Relevant to Databases

Several quantum algorithms provide significant speedups for database operations:

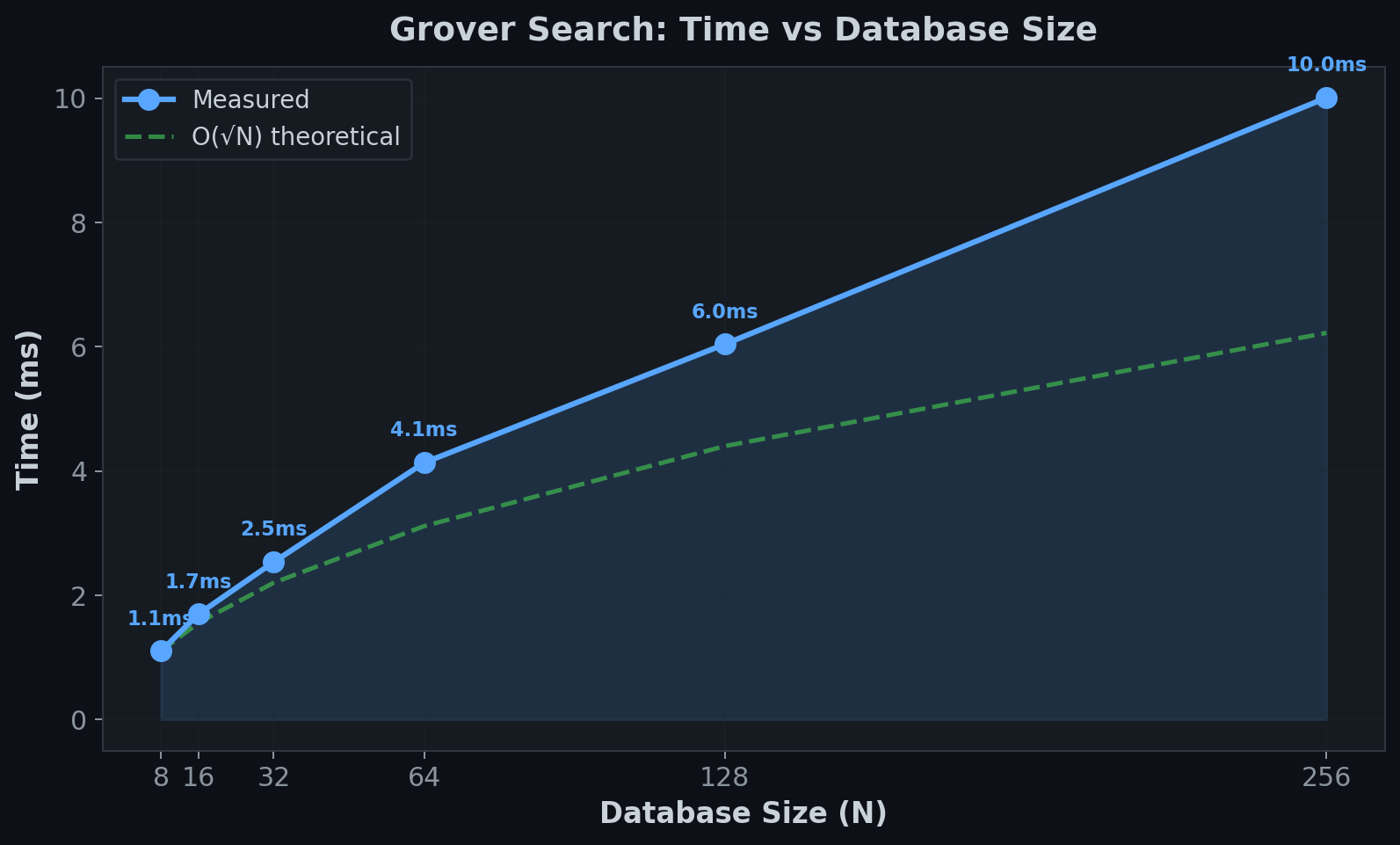

  1. Grover's Algorithm: Provides quadratic speedup for unstructured database search, finding items in O(√N) steps compared to classical O(N)

  2. Quantum Amplitude Amplification: Generalizes Grover's algorithm to enhance probability amplitudes of desired database states

  3. Quantum Walks: Provides exponential speedup for certain graph problems, enabling efficient database traversal and relationship analysis

  4. Quantum Principal Component Analysis: Performs dimensionality reduction on quantum data with exponential speedup

  5. Quantum Machine Learning Algorithms: Enable advanced data analysis directly on quantum-encoded data

  6. HHL Algorithm: Solves linear systems of equations with exponential speedup, useful for various database analytics

These algorithms form the foundation of our quantum database operations, providing significant performance advantages over classical approaches for specific workloads.

System Architecture

High-Level Architecture

The Quantum Database System employs a layered architecture that separates core quantum processing from user interfaces while providing middleware components for optimization and integration:

  1. Core Layer: Handles quantum processing, including circuit execution, data encoding, storage, and measurement

  2. Interface Layer: Provides user-facing components including the database client, query language, and transaction management

  3. Middleware Layer: Bridges quantum and classical systems while optimizing performance through caching, scheduling, and query planning

  4. Distributed Layer: Enables multi-node deployment with consensus algorithms and state synchronization

  5. Security Layer: Implements quantum cryptography, access control, and audit capabilities

  6. Utilities Layer: Provides supporting tools for visualization, configuration, logging, and benchmarking

This architecture balances quantum advantage with practical usability, enabling progressive adoption of quantum database technology.

Directory Structure

The system is organized into a modular directory structure as follows:

─ core/
│   ├── __init__.py
│   ├── quantum_engine.py        # Quantum processing unit
│   ├── encoding/
│   │   ├── __init__.py
│   │   ├── amplitude_encoder.py # Amplitude encoding for continuous data
│   │   ├── basis_encoder.py     # Basis encoding for discrete data
│   │   └── qram.py              # Quantum RAM implementation
│   ├── storage/
│   │   ├── __init__.py
│   │   ├── persistent_storage.py # Storage mechanisms
│   │   ├── circuit_compiler.py   # Circuit optimization
│   │   └── error_correction.py   # Quantum error correction
│   ├── operations/
│   │   ├── __init__.py
│   │   ├── quantum_gates.py      # Custom quantum gates
│   │   ├── search.py             # Quantum search algorithms
│   │   ├── join.py               # Quantum join operations
│   │   └── indexing.py           # Quantum index structures
│   └── measurement/
│       ├── __init__.py
│       ├── readout.py            # Measurement protocols
│       └── statistics.py         # Statistical analysis
├── interface/
│   ├── __init__.py
│   ├── db_client.py              # Client interface
│   ├── query_language.py         # Quantum SQL dialect
│   ├── transaction_manager.py    # ACID compliance
│   └── connection_pool.py        # Connection management
├── middleware/
│   ├── __init__.py
│   ├── classical_bridge.py       # Classical-quantum integration
│   ├── optimizer.py              # Query optimization
│   ├── scheduler.py              # Job scheduling
│   └── cache.py                  # Result caching
├── distributed/
│   ├── __init__.py
│   ├── node_manager.py           # Distributed node management
│   ├── consensus.py              # Quantum consensus algorithms
│   └── synchronization.py        # State synchronization
├── security/
│   ├── __init__.py
│   ├── quantum_encryption.py     # Quantum cryptography
│   ├── access_control.py         # Permission management
│   └── audit.py                  # Audit logging
├── utilities/
│   ├── __init__.py
│   ├── visualization.py          # Circuit visualization
│   ├── benchmarking.py           # Performance testing
│   ├── logging.py                # Logging framework
│   └── config.py                 # Configuration management
├── examples/
│   ├── basic_operations.py
│   ├── complex_queries.py
│   ├── distributed_database.py
│   └── secure_storage.py
├── tests/
│   ├── unit/
│   ├── integration/
│   └── performance/
├── documentation/
├── requirements.txt
├── setup.py
└── README.md

This structure promotes maintainability, testability, and modular development.

Component Interactions

The system components interact through well-defined interfaces:

  1. User → Interface Layer: Applications interact with the database through the client API, submitting queries in QuantumSQL

  2. Interface → Middleware: Queries are parsed, validated, and optimized by middleware components

  3. Middleware → Core: Optimized quantum circuits are dispatched to the quantum engine for execution

  4. Core → Quantum Hardware/Simulator: The quantum engine interacts with hardware or simulators via provider-specific APIs

  5. Core → Middleware: Measurement results are processed and returned to middleware for interpretation

  6. Middleware → Interface: Processed results are formatted and returned to clients

For distributed deployments, additional interactions occur:

  1. Node → Node: Distributed nodes communicate for consensus and state synchronization

  2. Security Layer: Cross-cutting security components operate across all layers

System Layers

Each system layer has distinct responsibilities:

Core Layer

Interface Layer

Middleware Layer

Distributed Layer

Security Layer

Utilities Layer

Data Flow Diagrams

For a query execution, data flows through the system as follows:

  1. Client application submits a QuantumSQL query
  2. Query parser validates syntax and semantics
  3. Query optimizer generates execution plan
  4. Circuit compiler translates to optimized quantum circuits
  5. Job scheduler allocates quantum resources
  6. Quantum engine executes circuits (on hardware or simulator)
  7. Measurement module captures and processes results
  8. Results are post-processed and formatted
  9. Query response returns to client

This process incorporates several feedback loops for optimization and error handling, ensuring robust operation even with the probabilistic nature of quantum computation.

Core Components

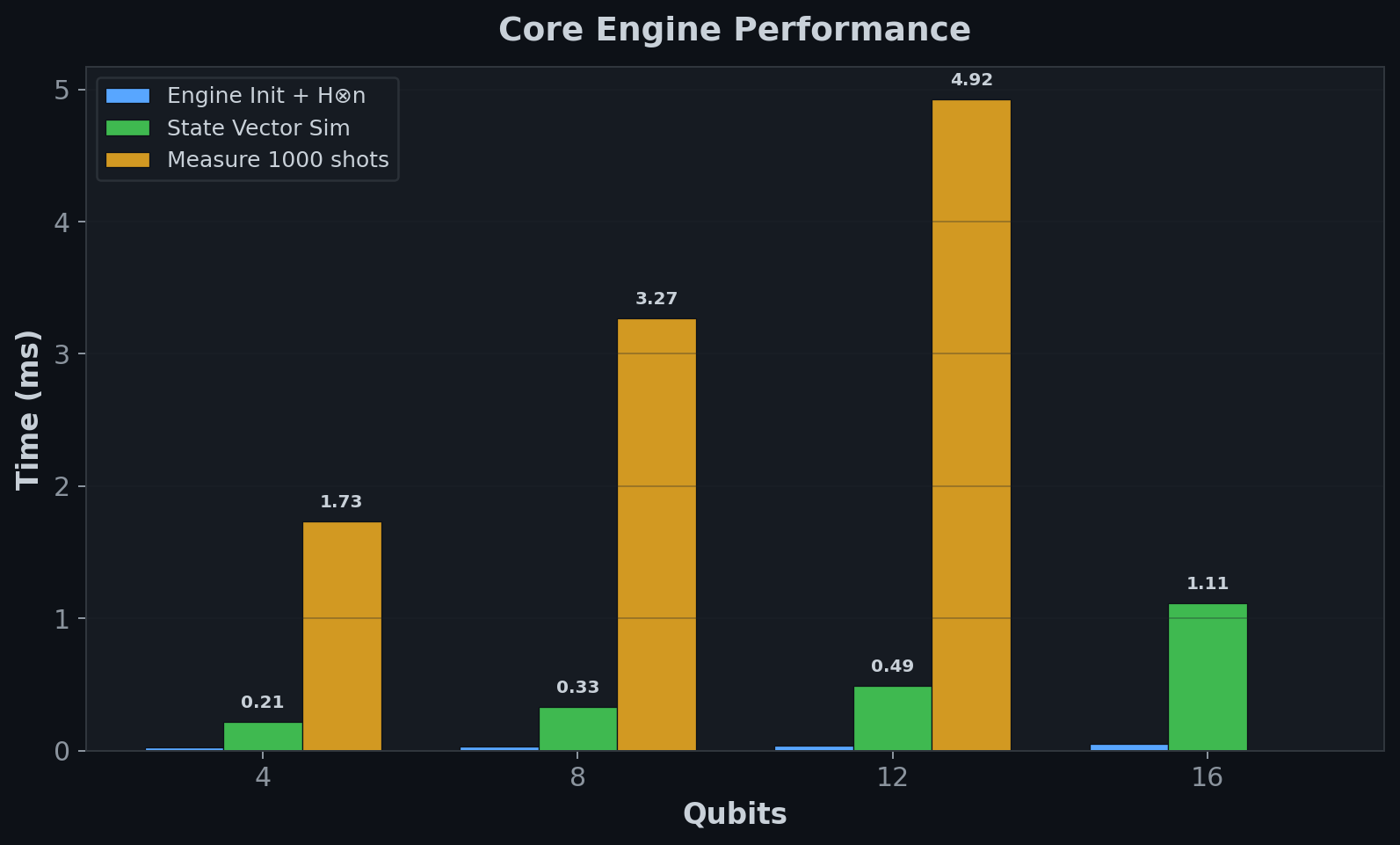

Quantum Engine

The Quantum Engine serves as the central processing unit of the system, managing quantum circuit execution, hardware interfaces, and resource allocation.

Quantum Circuit Management

The circuit management subsystem handles:

We implement a circuit abstraction layer that isolates database operations from hardware-specific implementations, enabling portability across different quantum platforms.

Hardware Interfaces

The system supports multiple quantum computing platforms through standardized interfaces:

The hardware abstraction layer enables transparent switching between platforms and graceful fallback to simulation when necessary.

Quantum Simulation

For development and testing where quantum hardware access is limited, the system provides several simulation options:

Simulation parameters can be configured to model specific hardware characteristics, enabling realistic performance assessment without physical quantum access.

Resource Management

Quantum resources (particularly qubits) are precious and require careful management:

Data Encoding Subsystem

The Data Encoding subsystem translates classical data into quantum states that can be processed by quantum algorithms.

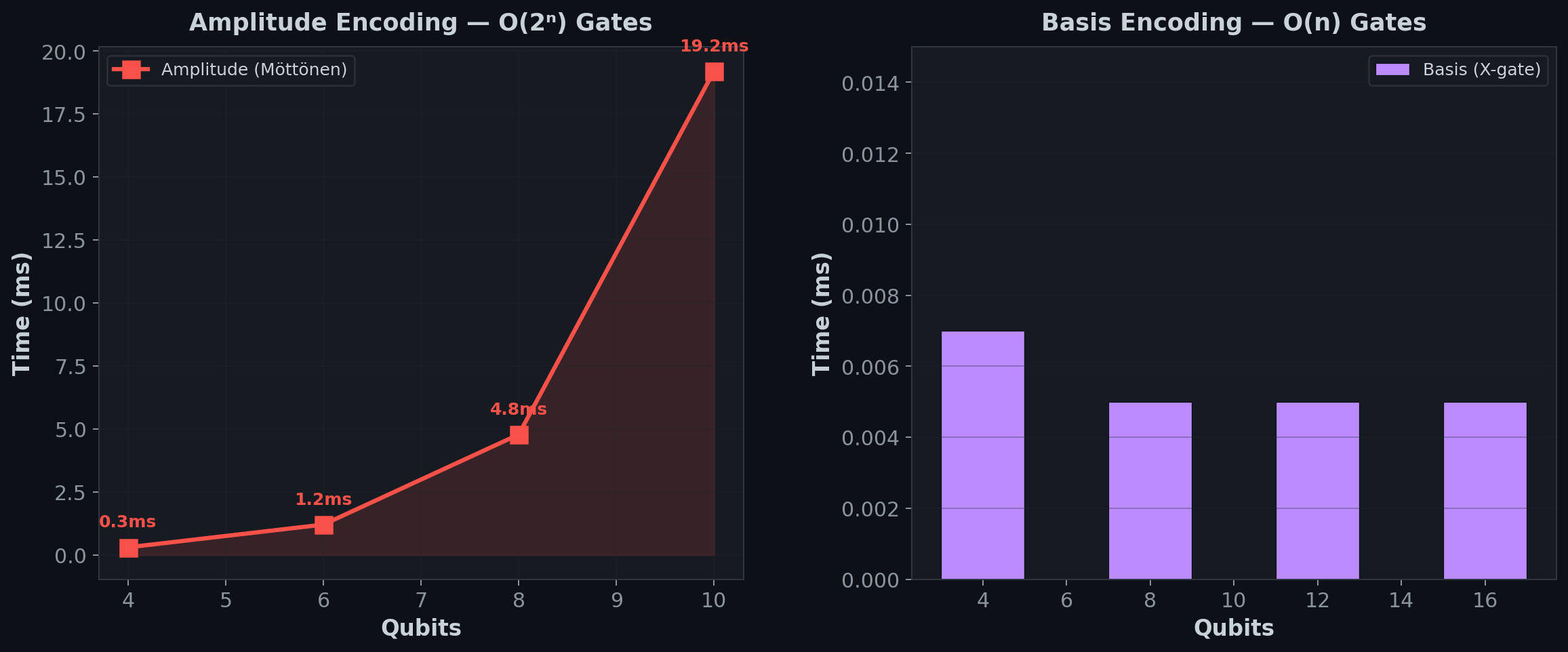

Amplitude Encoding

Amplitude encoding represents numerical data in the amplitudes of a quantum state, encoding n classical values into log₂(n) qubits:

This encoding is particularly useful for analytical queries involving numerical data.

Basis Encoding

Basis encoding represents discrete data using computational basis states:

This encoding supports traditional database operations like selection and joins.

Quantum Random Access Memory (QRAM)

QRAM provides efficient addressing and retrieval of quantum data:

While full QRAM implementation remains challenging on current hardware, our system includes optimized QRAM simulators and hardware-efficient approximations.

Sparse Data Encoding

Special techniques optimize encoding for sparse datasets:

Encoding Optimization

The system intelligently selects and optimizes encoding methods:

Storage System

The Storage System manages persistent storage of quantum data and circuits.

Persistent Quantum State Storage

While quantum states cannot be perfectly copied or stored indefinitely, the system implements several approaches for effective state persistence:

Circuit Compilation and Optimization

Stored quantum circuits undergo extensive optimization:

Quantum Error Correction

To mitigate the effects of quantum noise and decoherence:

Storage Formats

The system supports multiple storage formats:

Data Integrity Mechanisms

Ensures the reliability of stored quantum information:

Quantum Database Operations

The system implements quantum-enhanced versions of key database operations.

Custom Quantum Gates

Specialized quantum gates optimized for database operations:

Quantum Search Implementations

Quantum-accelerated search algorithms:

Quantum Join Operations

Advanced join algorithms leveraging quantum properties:

Quantum Indexing Structures

Quantum data structures for efficient retrieval:

Aggregation Functions

Quantum implementations of statistical operations:

Measurement and Results

Extracts classical information from quantum states.

Measurement Protocols

Sophisticated measurement approaches to maximize information extraction:

Statistical Analysis

Processes probabilistic measurement outcomes:

Error Mitigation

Techniques to improve measurement accuracy:

Result Interpretation

Translates quantum measurements to meaningful database results:

Visualization of Results

Tools for understanding quantum outputs:

Interface Layer

Database Client

The client interface provides access to quantum database functionality:

Quantum Query Language

QuantumSQL extends standard SQL with quantum-specific features.

QuantumSQL Syntax

SQL dialect with quantum extensions:

Example:

SELECT * FROM customers
QUANTUM GROVER_SEARCH
WHERE balance > 10000 AND risk_score < 30
QUBITS 8
CONFIDENCE 0.99;

Query Parsing and Validation

Processes QuantumSQL statements:

Query Execution Model

Multi-stage execution process:

  1. Parse: Convert QuantumSQL to parsed representation
  2. Plan: Generate classical and quantum execution plan
  3. Optimize: Apply quantum-aware optimizations
  4. Encode: Translate relevant data to quantum representation
  5. Execute: Run quantum circuits (potentially multiple times)
  6. Measure: Collect and process measurement results
  7. Interpret: Convert quantum outcomes to classical results
  8. Return: Deliver formatted results to client

Transaction Management

Adapts traditional transaction concepts to quantum context.

ACID Properties in Quantum Context

Redefines ACID guarantees for quantum databases:

Concurrency Control

Manages simultaneous database access:

Transaction Isolation Levels

Defines separation between concurrent operations:

Connection Management

Manages client connections to the quantum database.

Connection Pooling

Optimizes resource utilization:

Connection Lifecycle

Manages connection states:

Resource Limits

Controls system resource usage:

Middleware Components

Classical-Quantum Bridge

Facilitates integration between classical and quantum processing.

Data Translation Layer

Converts between representations:

Call Routing

Directs operations to appropriate processors:

Error Handling

Manages errors across the classical-quantum boundary:

Query Optimization

Optimizes database operations for quantum execution.

Circuit Optimization

Improves quantum circuit efficiency:

Query Planning

Generates efficient execution strategies:

Cost-Based Optimization

Selects optimal execution paths:

Job Scheduling

Manages execution of quantum database operations.

Priority Queues

Organizes operations based on importance:

Resource Allocation

Assigns system resources to operations:

Deadline Scheduling

Supports time-sensitive operations:

Result Caching

Improves performance through result reuse.

Cache Policies

Determines what and when to cache:

Cache Invalidation

Manages cache freshness:

Cache Distribution

Implements distributed caching:

Distributed System Capabilities

Node Management

Coordinates quantum database clusters.

Node Discovery

Identifies cluster participants:

Health Monitoring

Tracks node status:

Load Balancing

Distributes workload across nodes:

Quantum Consensus Algorithms

Enables agreement in distributed quantum systems.

Quantum Byzantine Agreement

Fault-tolerant consensus using quantum properties:

Entanglement-Based Consensus

Uses quantum entanglement for coordination:

Hybrid Classical-Quantum Consensus

Pragmatic approach combining both paradigms:

State Synchronization

Maintains consistent state across distributed nodes.

Quantum State Transfer

Moves quantum information between nodes:

Entanglement Swapping Protocols

Extends entanglement across the network:

Teleportation for State Replication

Uses quantum teleportation for state distribution:

Distributed Query Processing

Executes queries across multiple nodes.

Query Fragmentation

Divides queries into distributable components:

Distributed Execution Plans

Coordinates execution across the cluster:

Result Aggregation

Combines results from distributed processing:

Security Framework

This section documents the security measures integrated into our quantum database system, ensuring data protection in both classical and quantum environments.

Quantum Cryptography

Quantum cryptography leverages quantum mechanical principles to provide security guarantees that are mathematically provable rather than relying on computational complexity.

Quantum Key Distribution

Quantum Key Distribution (QKD) enables two parties to produce a shared random secret key known only to them, which can then be used to encrypt and decrypt messages.

Implementation Details

Integration Points

Configuration Options

qkd:
  protocol: "BB84"  # Alternatives: "E91", "CV-QKD"
  key_length: 256
  refresh_interval: "24h"
  entropy_source: "QRNG"  # Quantum Random Number Generator

Post-Quantum Cryptography

Post-quantum cryptography refers to cryptographic algorithms that are secure against attacks from both classical and quantum computers.

Supported Algorithms

Implementation Strategy

Migration Path

Homomorphic Encryption for Quantum Data

Homomorphic encryption allows computations to be performed on encrypted data without decrypting it first, preserving data privacy even during processing.

Features

Performance Considerations

Use Cases

Access Control

A comprehensive access control system that manages and enforces permissions across the quantum database ecosystem.

Role-Based Access Control

Role-Based Access Control (RBAC) assigns permissions to roles, which are then assigned to users.

Role Hierarchy

Permission Types

Implementation

# Example role definition
{
    "role_id": "quantum_analyst",
    "permissions": [
        {"resource": "quantum_circuits", "actions": ["read", "execute"]},
        {"resource": "measurement_results", "actions": ["read"]}
    ],
    "inherits_from": ["basic_user"]
}

Attribute-Based Access Control

Attribute-Based Access Control (ABAC) makes access decisions based on attributes associated with users, resources, and environmental conditions.

Attribute Categories

Policy Expression

Context-Aware Security

Quantum Authentication Protocols

Authentication mechanisms designed specifically for quantum computing environments.

Quantum Identification

Multi-Factor Authentication

Single Sign-On

Audit Logging

Comprehensive logging system to track all activities within the quantum database for security and compliance purposes.

Quantum-Signed Audit Trails

Audit logs cryptographically signed using quantum mechanisms to ensure integrity.

Signature Mechanism

Log Content

Implementation

[2025-03-15T14:22:33Z] user="alice" action="EXECUTE_CIRCUIT" circuit_id="qc-7890" qubits=5 status="SUCCESS" duration_ms=127 signature="q0uAn7um51gn..."

Tamper-Evident Logging

Mechanisms to detect any unauthorized modifications to audit logs.

Techniques

Real-time Monitoring

Forensic Capabilities

Compliance Features

Features designed to meet regulatory requirements for data handling and security.

Supported Frameworks

Reporting Tools

Data Sovereignty

Vulnerability Management

Processes and tools to identify, classify, remediate, and mitigate security vulnerabilities.

Threat Modeling

Systematic approach to identifying potential threats to the quantum database system.

Methodology

Quantum-Specific Threats

Mitigation Strategies

Security Testing

Tools and methodologies for testing the security of the quantum database system.

Testing Types

Automated Security Scanning

Penetration Testing Guidelines

Incident Response

Procedures for responding to security incidents involving the quantum database.

Response Plan

Quantum-Specific Responses

Documentation and Learning

Utilities and Tools

Comprehensive set of utilities and tools designed to support the operation, monitoring, and optimization of the quantum database system.

Visualization Tools

Tools for visualizing various aspects of the quantum database system.

Circuit Visualization

Interactive tools for visualizing quantum circuits used in database operations.

Features

Rendering Options

Export Capabilities

Data Flow Visualization

Tools for visualizing the flow of data through the quantum database system.

Visualization Types

Interactivity

Integration Points

Performance Dashboards

Comprehensive dashboards for monitoring system performance metrics.

Metrics Displayed

Dashboard Features

Export and Reporting

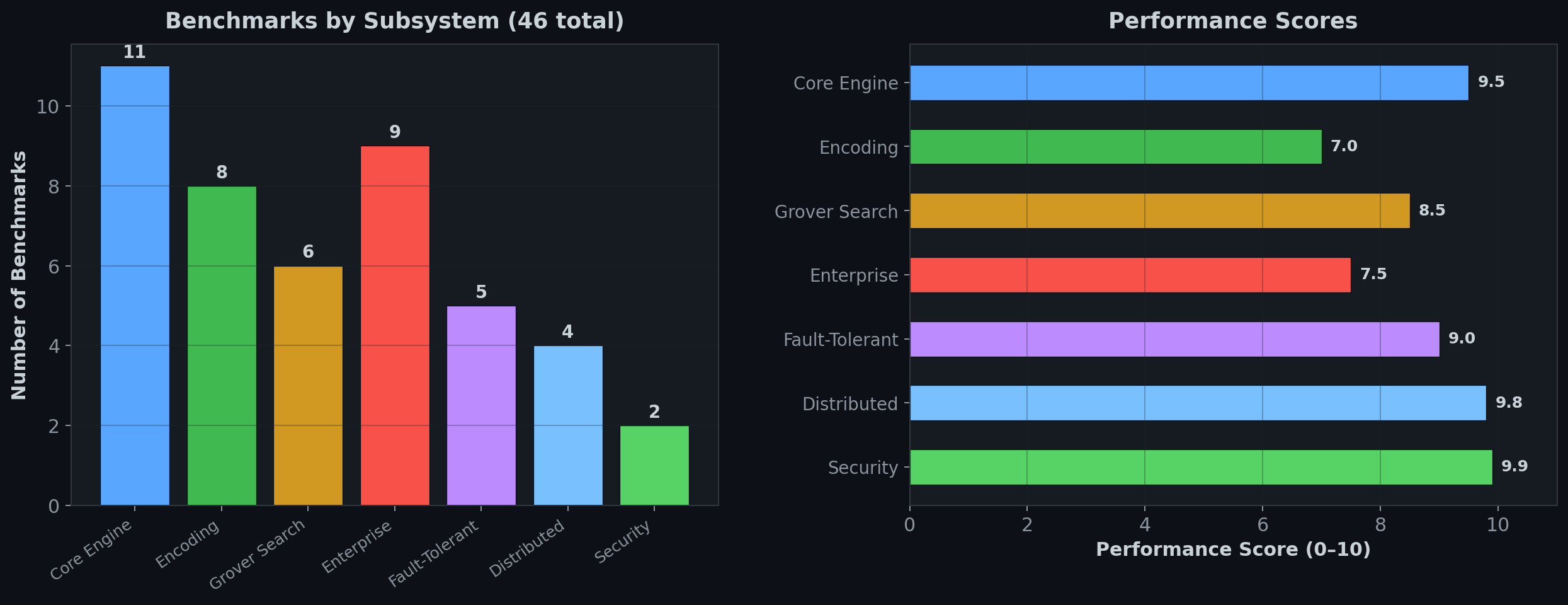

Benchmarking Framework

Comprehensive framework for measuring and comparing performance of quantum database operations.

Performance Metrics

Standard metrics used to evaluate the performance of the quantum database.

Quantum Metrics

Classical Metrics

Combined Metrics

Comparative Analysis

Tools for comparing performance across different configurations and systems.

Comparison Dimensions

Visualization Tools

Report Generation

Scaling Evaluations

Tools and methodologies for evaluating how performance scales with increasing data size or system load.

Scaling Dimensions

Test Automation

Result Analysis

Logging Framework

Comprehensive system for recording events and operations within the quantum database.

Log Levels and Categories

Structured approach to organizing and filtering log information.

Log Levels

Log Categories

Configuration Example

logging:
  default_level: INFO
  categories:
    QUANTUM_OPERATION: DEBUG
    SECURITY: INFO
    PERFORMANCE: DEBUG
  outputs:
    - type: file
      path: "/var/log/quantumdb/system.log"
    - type: syslog
      facility: LOCAL0

Log Rotation and Archiving

Mechanisms for managing log files over time.

Rotation Policies

Compression Options

Archival Integration

Structured Logging

Advanced logging capabilities that provide structured, machine-parseable log data.

Data Formats

Contextual Information

Integration Capabilities

Configuration Management

Tools and systems for managing the configuration of the quantum database.

Configuration Sources

Various sources from which configuration can be loaded and managed.

Supported Sources

Hierarchy and Precedence

Dynamic Discovery

Parameter Validation

Mechanisms to validate configuration parameters before applying them.

Validation Types

Schema Definition

Error Handling

Dynamic Reconfiguration

Capabilities for changing configuration parameters at runtime without restart.

Reconfigurable Parameters

Change Management

Notification System

Installation and Setup

Comprehensive guide for installing and setting up the quantum database system in various environments.

System Requirements

Detailed specifications of the hardware and software requirements for running the quantum database.

Hardware Requirements

Specifications for the classical computing hardware required to run the quantum database system.

Minimal Configuration

High-Performance Configuration

Software Dependencies

Required software components and dependencies for the quantum database system.

Operating Systems

Core Dependencies

Quantum Frameworks

Quantum Hardware Support

Details of supported quantum computing hardware and requirements.

Supported Quantum Processors

Simulator Support

Hybrid Requirements

Installation Methods

*!!!!!!!!!!!!!(the packages are yet not released docker so you have to use from github and pip )!!!!!!!!!! Various methods for installing the quantum database system.

Package Installation

Installation using pre-built packages.

Package Managers

!!!!!!!!!!!!!(the packages are yet not released docker so you have to use from github and pip )!!!!!!!!!!* - pip: pip install qndb - conda: conda install -c quantum-channel qndb - apt/yum**: Repository setup and installation instructions

Verification

Upgrade Path

Source Installation

Installation from source code.

Prerequisites

Build Process

git clone https://github.com/abhishekpanthee/quantum-database.git
cd quantum-database
python -m pip install -e .

Custom Build Options

Docker Installation

*!!!!!!!!!!!!!(the packages are yet not released in docker so you have to use from github and pip )!!!!!!!!!! Installation using Docker containers.

Available Images

Deployment Commands

docker pull abhishekpanthee-org/qndb:latest
docker run -d -p 8000:8000 -v qdb-data:/var/lib/qdb abhishekpanthee-org/qndb

Docker Compose

version: '3'
services:
  qndb:
    image: abhishekpanthee-org/qndb:latest
    ports:
      - "8000:8000"
    volumes:
      - qdb-data:/var/lib/qdb
    environment:
      - QDB_LICENSE_KEY=${QDB_LICENSE_KEY}
      - QDB_QUANTUM_PROVIDER=simulator

Configuration

Detailed instructions for configuring the quantum database system.

Basic Configuration

Essential configuration parameters required for operation.

Configuration File

# config.yaml
database:
  name: "quantum_db"
  data_dir: "/var/lib/qdb/data"

quantum:
  backend: "simulator"  # or "ibm", "rigetti", "ionq", etc.
  simulator_type: "statevector"
  max_qubits: 24

network:
  host: "0.0.0.0"
  port: 8000

security:
  encryption: "enabled"
  authentication: "required"

Initial Setup Commands

qdb-admin init --config /path/to/config.yaml
qdb-admin create-user --username admin --role administrator

Validation

Advanced Configuration

Advanced configuration options for performance tuning and specialized features.

Performance Tuning

performance:
  classical_threads: 16
  circuit_optimization: "high"
  max_concurrent_quantum_jobs: 8
  caching:
    enabled: true
    max_size_mb: 1024
    ttl_seconds: 3600

Distributed Setup

cluster:
  enabled: true
  nodes:
    - host: "node1.example.com"
      port: 8000
      role: "primary"
    - host: "node2.example.com"
      port: 8000
      role: "replica"
  consensus_protocol: "quantum-paxos"

Hardware Integration

quantum_hardware:
  connection_string: "https://quantum.example.com/api"
  api_key: "${QDB_API_KEY}"
  hub: "research"
  group: "main"
  project: "default"
  reservation: "dedicated-runtime"

Environment Variables

Configuration through environment variables.

Core Variables

Security Variables

Example Setup

export QDB_HOME=/opt/quantum-db
export QDB_CONFIG=/etc/qdb/config.yaml
export QDB_LOG_LEVEL=INFO
export QDB_QUANTUM_BACKEND=ibm

Verification

Methods for verifying the installation and proper operation of the system.

Installation Verification

Tests to verify successful installation.

Basic Verification

qdb-admin verify-installation

Component Tests

Verification Report

System Health Check

Tools for checking the ongoing health of the system.

Health Check Command

qdb-admin health-check --comprehensive

Monitored Aspects

Periodic Monitoring

Performance Baseline

Establishing performance baselines for system monitoring.

Baseline Creation

qndb-admin create-baseline --workload typical --duration 1h

Measured Metrics

Baseline Comparison

Usage Guide

*!!!!!!!!!!!!!(the packages are yet not released in pip as well as docker so you have to use from github)!!!!!!!!!!

Comprehensive guide for using the quantum database system, from initial setup to advanced operations.

Getting Started ( the pakages are yet not released in pip as well as docker so you have to use from github)

First steps for new users of the quantum database system.

First Connection

Instructions for establishing the first connection to the database.

Connection Methods

Authentication

# CLI Authentication
qndb-cli connect --host localhost --port 8000 --user admin

# API Authentication
from quantumdb import Client
client = Client(host="localhost", port=8000)
client.authenticate(username="admin", password="password")

Connection Troubleshooting

Database Creation

Creating a new quantum database.

Creation Commands

# CLI Database Creation
qndb-cli create-database my_quantum_db

# API Database Creation
client.create_database("my_quantum_db")

Database Options

Initialization Scripts

Basic Operations

Fundamental operations for working with the quantum database.

Data Insertion

# Insert classical data with quantum encoding
client.connect("my_quantum_db")
client.execute("""
    INSERT INTO quantum_table (id, vector_data)
    VALUES (1, [0.5, 0.3, 0.8, 0.1])
""")

Simple Queries

# Basic quantum query
results = client.execute("""
    SELECT * FROM quantum_table
    WHERE quantum_similarity(vector_data, [0.5, 0.4, 0.8, 0.1]) > 0.9
""")

Data Manipulation

# Update operation
client.execute("""
    UPDATE quantum_table
    SET vector_data = quantum_rotate(vector_data, 0.15)
    WHERE id = 1
""")

Data Modeling

Approaches and best practices for modeling data in the quantum database.

Schema Design

Principles and practices for designing effective quantum database schemas.

Quantum Data Types

Schema Definition Language

CREATE QUANTUM TABLE molecular_data (
    id INTEGER PRIMARY KEY,
    molecule_name TEXT,
    atomic_structure QUVECTOR(128) ENCODING AMPLITUDE,
    energy_levels QUMATRIX(16, 16) ENCODING PHASE,
    is_stable QUBIT
);

Schema Evolution

Quantum-Optimized Data Models

Data modeling patterns optimized for quantum processing.

Superposition Models

Entanglement Models

Interference Patterns

Index Strategy

Approaches to indexing data for efficient quantum retrieval.

Quantum Index Types

Index Creation

CREATE QUANTUM INDEX grover_idx
ON quantum_table (vector_data)
USING GROVER
WITH PARAMETERS { 'precision': 'high', 'iterations': 'auto' };

Index Maintenance

Querying Data

Methods and techniques for querying data from the quantum database.

Basic Queries

Fundamental query operations for the quantum database.

Selection Queries

-- Basic selection with quantum condition
SELECT * FROM molecule_data
WHERE quantum_similarity(atomic_structure, :target_structure) > 0.8;

-- Projection of quantum data
SELECT id, quantum_measure(energy_levels) AS observed_energy
FROM molecule_data;

Aggregation Queries

-- Quantum aggregation
SELECT AVG(quantum_expectation(energy_levels, 'hamiltonian'))
FROM molecule_data
GROUP BY molecule_type;

Join Operations

-- Quantum join based on entanglement
SELECT a.id, b.id, quantum_correlation(a.spin, b.spin)
FROM particle_a a
QUANTUM JOIN particle_b b
ON a.interaction_id = b.interaction_id;

Advanced Query Techniques

Sophisticated techniques for quantum data querying.

Quantum Search Algorithms

-- Grover's algorithm for unstructured search
SELECT * FROM large_dataset
USING QUANTUM SEARCH
WHERE exact_match(complex_condition) = TRUE;

Quantum Machine Learning Queries

-- Quantum clustering query
SELECT cluster_id, COUNT(*)
FROM (
    SELECT *, QUANTUM_KMEANS(vector_data, 8) AS cluster_id
    FROM data_points
) t
GROUP BY cluster_id;

Hybrid Classical-Quantum Queries

-- Hybrid processing
SELECT
    id,
    classical_score * quantum_amplitude(quantum_data) AS hybrid_score
FROM candidate_data
WHERE classical_filter = TRUE
ORDER BY hybrid_score DESC
LIMIT 10;

Performance Optimization

Techniques for optimizing query performance.

Query Planning

Optimization Techniques

Caching Strategies

Administration

Administrative tasks for managing the quantum database system.

Monitoring

Tools and techniques for monitoring system operation.

Monitoring Tools

Key Metrics

Alerting Setup

Backup and Recovery

Procedures for backing up and recovering quantum database data.

Backup Types

Backup Commands

# Full backup
qdb-admin backup --database my_quantum_db --destination /backups/

# Scheduled backups
qdb-admin schedule-backup --database my_quantum_db --frequency daily --time 02:00

Recovery Procedures

Scaling

Methods for scaling the quantum database to handle increased load.

Vertical Scaling

Horizontal Scaling

Hybrid Scaling

API Reference

Core API

QuantumDB

Main database instance management and configuration.

from quantumdb import QuantumDB

# Initialize database with default simulation backend
db = QuantumDB(name="financial_data", backend="simulator")

# Connect to hardware backend with authentication
db = QuantumDB(
    name="research_data",
    backend="hardware",
    provider="quantum_cloud",
    api_key="your_api_key"
)

# Configure database settings
db.configure(
    max_qubits=50,
    error_correction=True,
    persistence_path="/data/quantum_storage"
)

QuantumTable

Table creation, schema definition, and metadata management.

# Create a new table with schema
users_table = db.create_table(
    name="users",
    schema={
        "id": "quantum_integer(8)",  # 8-qubit integer
        "name": "classical_string",  # Classical storage for efficiency
        "account_balance": "quantum_float(16)",  # 16-qubit floating-point
        "risk_profile": "quantum_vector(4)"  # 4-dimensional quantum state
    },
    primary_key="id"
)

# Add indices for improved search performance
users_table.add_quantum_index("account_balance")
users_table.add_quantum_index("risk_profile", index_type="similarity")

QuantumQuery

Query construction, execution, and result handling.

# Construct a query using SQL-like syntax
query = db.query("""
    SELECT id, name, account_balance
    FROM users
    WHERE risk_profile SIMILAR TO quantum_vector([0.2, 0.4, 0.1, 0.3])
    AND account_balance > 1000
    LIMIT 10
""")

# Execute and retrieve results
results = query.execute()
for row in results:
    print(f"ID: {row.id}, Name: {row.name}, Balance: {row.account_balance}")

# Programmatic query construction
query = db.query_builder() \
    .select("id", "name", "account_balance") \
    .from_table("users") \
    .where("risk_profile").similar_to([0.2, 0.4, 0.1, 0.3]) \
    .and_where("account_balance").greater_than(1000) \
    .limit(10) \
    .build()

QuantumTransaction

ACID-compliant transaction processing.

# Begin a quantum transaction
with db.transaction() as txn:
    # Add a new user
    txn.execute("""
        INSERT INTO users (id, name, account_balance, risk_profile)
        VALUES (42, 'Alice', 5000, quantum_vector([0.1, 0.2, 0.3, 0.4]))
    """)

    # Update account balance with quantum addition
    txn.execute("""
        UPDATE users
        SET account_balance = quantum_add(account_balance, 1000)
        WHERE id = 42
    """)

    # Transaction automatically commits if no errors
    # If any error occurs, quantum state rolls back

Quantum Operations API

GroverSearch

Implementation of Grover's algorithm for quantum search operations.

from qndb.operations import GroverSearch

# Create a search for exact matches
search = GroverSearch(table="users", column="account_balance", value=5000)
results = search.execute()

# Create a search for range queries with custom iterations
range_search = GroverSearch(
    table="users",
    column="account_balance",
    range_min=1000,
    range_max=10000,
    iterations=5  # Customize number of Grover iterations
)
range_results = range_search.execute()

# Access search statistics
print(f"Query probability: {range_search.statistics.probability}")
print(f"Circuit depth: {range_search.statistics.circuit_depth}")
print(f"Qubits used: {range_search.statistics.qubit_count}")

QuantumJoin

High-performance quantum-accelerated table joins.

from qndb.operations import QuantumJoin

# Join transactions and users tables
join = QuantumJoin(
    left_table="transactions",
    right_table="users",
    join_type="inner",
    join_condition="transactions.user_id = users.id"
)

# Execute join with optimization hints
results = join.execute(
    optimization_level=2,
    max_qubits=100,
    use_amplitude_amplification=True
)

# Monitor join progress
join.on_progress(lambda progress: print(f"Join progress: {progress}%"))

QuantumIndex

Quantum indexing structures for rapid data retrieval.

from qndb.operations import QuantumIndex

# Create a quantum index
idx = QuantumIndex(
    table="users",
    column="risk_profile",
    index_type="quantum_tree",
    dimension=4  # For vector data
)

# Build the index
idx.build()

# Use the index in a query
query = db.query_builder() \
    .select("*") \
    .from_table("users") \
    .use_index(idx) \
    .where("risk_profile").similar_to([0.3, 0.3, 0.2, 0.2]) \
    .limit(5) \
    .build()

results = query.execute()

QuantumAggregation

Quantum-based data aggregation functions.

from qndb.operations import QuantumAggregation

# Perform quantum aggregation
agg = QuantumAggregation(
    table="transactions",
    group_by="user_id",
    aggregations=[
        ("amount", "quantum_sum", "total"),
        ("amount", "quantum_average", "avg_amount"),
        ("amount", "quantum_variance", "var_amount")
    ]
)

# Execute with quantum estimation techniques
results = agg.execute(estimation_precision=0.01)

# Retrieve results with confidence intervals
for row in results:
    print(f"User ID: {row.user_id}")
    print(f"Total: {row.total} ± {row.total_confidence}")
    print(f"Average: {row.avg_amount} ± {row.avg_amount_confidence}")

Encoding API

AmplitudeEncoder

Encoding continuous data into quantum amplitudes.

from qndb.encoding import AmplitudeEncoder

# Create an encoder for floating-point data
encoder = AmplitudeEncoder(
    precision=0.001,
    normalization=True,
    qubits=8
)

# Encode a list of values
encoded_circuit = encoder.encode([0.5, 0.2, 0.1, 0.7, 0.3])

# Use in a database operation
db.store_quantum_state(
    table="market_data",
    column="price_vectors",
    row_id=42,
    quantum_state=encoded_circuit
)

# Decode a quantum state
probabilities = encoder.decode(db.get_quantum_state("market_data", "price_vectors", 42))
print(f"Decoded values: {probabilities}")

BasisEncoder

Encoding discrete data into quantum basis states.

from qndb.encoding import BasisEncoder

# Create an encoder for categorical data
encoder = BasisEncoder(bit_mapping="binary")

# Encode categorical values
circuit = encoder.encode(
    values=["apple", "orange", "banana"],
    categories=["apple", "orange", "banana", "grape", "melon"]
)

# Binary encode numerical values
id_circuit = encoder.encode_integers([12, 42, 7], bits=6)

# Combine encoded circuits
combined = encoder.combine_circuits([circuit, id_circuit])

QRAM

Quantum Random Access Memory implementation.

from qndb.encoding import QRAM

# Initialize a quantum RAM
qram = QRAM(address_qubits=3, data_qubits=8)

# Store data
qram.store(
    address=0,
    data=[1, 0, 1, 0, 1, 1, 0, 0]  # Binary data to store
)

# Prepare superposition of addresses to enable quantum parallelism
qram.prepare_address_superposition(["hadamard", "hadamard", "hadamard"])

# Query in superposition and measure
result = qram.query_and_measure(shots=1000)
print(f"Query results distribution: {result}")

HybridEncoder

Combined classical/quantum encoding strategies.

from qndb.encoding import HybridEncoder

# Create a hybrid encoder for mixed data types
encoder = HybridEncoder()

# Add different encoding strategies for different columns
encoder.add_strategy("id", "basis", bits=8)
encoder.add_strategy("name", "classical")  # Store classically
encoder.add_strategy("values", "amplitude", qubits=6)
encoder.add_strategy("category", "one_hot", categories=["A", "B", "C", "D"])

# Encode a record
record = {
    "id": 42,
    "name": "Alice",
    "values": [0.1, 0.2, 0.3, 0.4],
    "category": "B"
}

encoded_record = encoder.encode(record)

# Store in database
db.store_hybrid_record("users", encoded_record, record_id=42)

System Management API

ClusterManager

Distributed node management and coordination.

from qndb.system import ClusterManager

# Initialize a cluster manager
cluster = ClusterManager(
    config_path="/etc/quantumdb/cluster.yaml",
    local_node_id="node1"
)

# Add nodes to cluster
cluster.add_node(
    node_id="node2",
    hostname="quantum-db-2.example.com",
    port=5432,
    qubit_capacity=50
)

# Start the cluster
cluster.start()

# Monitor cluster health
status = cluster.health_check()
for node_id, node_status in status.items():
    print(f"Node {node_id}: {'Online' if node_status.online else 'Offline'}")
    print(f"  Load: {node_status.load}%")
    print(f"  Available qubits: {node_status.available_qubits}")

# Distribute a database across the cluster
cluster.create_distributed_database(
    name="global_finance",
    sharding_key="region",
    replication_factor=2
)

SecurityManager

Quantum encryption and access control.

from qndb.system import SecurityManager

# Initialize security manager
security = SecurityManager(db)

# Configure quantum key distribution
security.configure_qkd(
    protocol="BB84",
    key_refresh_interval=3600,  # seconds
    key_length=256
)

# Set up access control
security.create_role("analyst", permissions=[
    "SELECT:users",
    "SELECT:transactions",
    "EXECUTE:GroverSearch"
])

security.create_user(
    username="alice",
    role="analyst",
    quantum_public_key="-----BEGIN QUANTUM PUBLIC KEY-----\n..."
)

# Encrypt sensitive data
security.encrypt_column("users", "account_balance")

# Audit security events
security.enable_audit_logging("/var/log/quantumdb/security.log")

PerformanceMonitor

System monitoring and performance analytics.

from qndb.system import PerformanceMonitor

# Initialize performance monitoring
monitor = PerformanceMonitor(db)

# Start collecting metrics
monitor.start(
    sampling_interval=5,  # seconds
    metrics=["qubit_usage", "circuit_depth", "query_time", "error_rates"]
)

# Get real-time statistics
stats = monitor.get_current_stats()
print(f"Active queries: {stats.active_queries}")
print(f"Qubits in use: {stats.qubit_usage}/{stats.total_qubits}")
print(f"Average circuit depth: {stats.avg_circuit_depth}")

# Generate performance report
report = monitor.generate_report(
    start_time=datetime(2025, 3, 20),
    end_time=datetime(2025, 3, 31),
    format="html"
)

# Export metrics to monitoring systems
monitor.export_metrics("prometheus", endpoint="http://monitoring:9090/metrics")

ConfigurationManager

System-wide configuration and tuning.

from qndb.system import ConfigurationManager

# Initialize configuration manager
config = ConfigurationManager("/etc/quantumdb/config.yaml")

# Set global parameters
config.set("max_qubits_per_query", 100)
config.set("error_correction.enabled", True)
config.set("error_correction.code", "surface_code")
config.set("optimization_level", 2)

# Apply settings to different environments
config.add_environment("production", {
    "persistence.enabled": True,
    "backend": "hardware",
    "max_concurrent_queries": 25
})

config.add_environment("development", {
    "persistence.enabled": False,
    "backend": "simulator",
    "max_concurrent_queries": 10
})

# Switch environments
config.activate_environment("development")

# Save configuration
config.save()

Examples

Basic Operations

Creating a Quantum Database

from quantumdb import QuantumDB

# Initialize a new quantum database
db = QuantumDB(name="employee_records")

# Create tables
db.execute("""
CREATE TABLE departments (
    id QUANTUM_INT(4) PRIMARY KEY,
    name TEXT,
    budget QUANTUM_FLOAT(8)
)
""")

db.execute("""
CREATE TABLE employees (
    id QUANTUM_INT(6) PRIMARY KEY,
    name TEXT,
    department_id QUANTUM_INT(4),
    salary QUANTUM_FLOAT(8),
    performance_vector QUANTUM_VECTOR(4),
    FOREIGN KEY (department_id) REFERENCES departments(id)
)
""")

# Initialize quantum storage
db.initialize_storage()
print("Database created successfully")

CRUD Operations

# INSERT operation
db.execute("""
INSERT INTO departments (id, name, budget)
VALUES (1, 'Research', 1000000.00),
       (2, 'Development', 750000.00),
       (3, 'Marketing', 500000.00)
""")

# INSERT with quantum vectors
from qndb.types import QuantumVector

db.execute("""
INSERT INTO employees (id, name, department_id, salary, performance_vector)
VALUES (1, 'Alice', 1, 85000.00, ?),
       (2, 'Bob', 1, 82000.00, ?),
       (3, 'Charlie', 2, 78000.00, ?)
""", params=[
    QuantumVector([0.9, 0.7, 0.8, 0.9]),  # Alice's performance metrics
    QuantumVector([0.8, 0.8, 0.7, 0.7]),  # Bob's performance metrics
    QuantumVector([0.7, 0.9, 0.8, 0.6])   # Charlie's performance metrics
])

# UPDATE operation with quantum arithmetic
db.execute("""
UPDATE departments
SET budget = QUANTUM_MULTIPLY(budget, 1.1)  -- 10% increase
WHERE name = 'Research'
""")

# READ operation
result = db.execute("SELECT * FROM employees WHERE department_id = 1")
for row in result:
    print(f"ID: {row.id}, Name: {row.name}, Salary: {row.salary}")

# DELETE operation
db.execute("DELETE FROM employees WHERE id = 3")

Simple Queries

# Basic filtering
engineers = db.execute("""
SELECT id, name, salary
FROM employees
WHERE department_id = 2
ORDER BY salary DESC
""")

# Quantum filtering with similarity search
similar_performers = db.execute("""
SELECT id, name
FROM employees
WHERE QUANTUM_SIMILARITY(performance_vector, ?) > 0.85
""", params=[QuantumVector([0.8, 0.8, 0.8, 0.8])])

# Aggregation
dept_stats = db.execute("""
SELECT department_id,
       COUNT(*) as employee_count,
       QUANTUM_AVG(salary) as avg_salary,
       QUANTUM_STDDEV(salary) as salary_stddev
FROM employees
GROUP BY department_id
""")

# Join operation
employee_details = db.execute("""
SELECT e.name as employee_name, d.name as department_name, e.salary
FROM employees e
JOIN departments d ON e.department_id = d.id
WHERE e.salary > 80000
""")

Complex Queries

Quantum Search Implementation

from qndb.operations import GroverSearch

# Prepare database with sample data
db.execute("INSERT INTO employees_large (id, salary) VALUES (?, ?)",
          [(i, random.uniform(50000, 150000)) for i in range(1, 10001)])

# Create a Grover's search for salary range
search = GroverSearch(db, "employees_large")

# Configure the search conditions
search.add_condition("salary", ">=", 90000)
search.add_condition("salary", "<=", 100000)

# Set up the quantum circuit
search.prepare_circuit(
    iterations="auto",  # Automatically determine optimal iterations
    ancilla_qubits=5,
    error_mitigation=True
)

# Execute the search
results = search.execute(limit=100)

print(f"Found {len(results)} employees with salary between 90K and 100K")
print(f"Execution statistics:")
print(f"  Qubits used: {search.stats.qubits_used}")
print(f"  Circuit depth: {search.stats.circuit_depth}")
print(f"  Grover iterations: {search.stats.iterations}")
print(f"  Success probability: {search.stats.success_probability:.2f}")

Multi-table Joins

from qndb.operations import QuantumJoin

# Configure a three-way quantum join
join = QuantumJoin(db)

# Add tables to the join
join.add_table("employees", "e")
join.add_table("departments", "d")
join.add_table("projects", "p")

# Define join conditions
join.add_join_condition("e.department_id", "d.id")
join.add_join_condition("e.id", "p.employee_id")

# Add filter conditions
join.add_filter("d.budget", ">", 500000)
join.add_filter("p.status", "=", "active")

# Select columns
join.select_columns([
    "e.id", "e.name", "d.name AS department",
    "p.name AS project", "p.deadline"
])

# Order the results
join.order_by("p.deadline", ascending=True)

# Execute with quantum acceleration
results = join.execute(
    quantum_acceleration=True,
    optimization_level=2
)

# Process results
for row in results:
    print(f"Employee: {row.name}, Department: {row.department}, "
          f"Project: {row.project}, Deadline: {row.deadline}")

Subqueries and Nested Queries

# Complex query with subqueries
high_performers = db.execute("""
SELECT e.id, e.name, e.salary, d.name as department
FROM employees e
JOIN departments d ON e.department_id = d.id
WHERE e.salary > (
    SELECT QUANTUM_AVG(salary) * 1.2  -- 20% above average
    FROM employees
    WHERE department_id = e.department_id
)
AND e.id IN (
    SELECT employee_id
    FROM performance_reviews
    WHERE QUANTUM_DOT_PRODUCT(review_vector, ?) > 0.8
)
ORDER BY e.salary DESC
""", params=[QuantumVector([0.9, 0.9, 0.9, 0.9])])

# Query using Common Table Expressions (CTEs)
top_departments = db.execute("""
WITH dept_performance AS (
    SELECT
        d.id,
        d.name,
        COUNT(e.id) as employee_count,
        QUANTUM_AVG(e.salary) as avg_salary,
        QUANTUM_STATE_EXPECTATION(
            QUANTUM_AGGREGATE(e.performance_vector)
        ) as avg_performance
    FROM departments d
    JOIN employees e ON d.id = e.department_id
    GROUP BY d.id, d.name
),
top_performers AS (
    SELECT id, name, avg_performance
    FROM dept_performance
    WHERE avg_performance > 0.8
    ORDER BY avg_performance DESC
    LIMIT 3
)
SELECT tp.name, tp.avg_performance, dp.employee_count, dp.avg_salary
FROM top_performers tp
JOIN dept_performance dp ON tp.id = dp.id
ORDER BY tp.avg_performance DESC
""")

Distributed Database

Setting Up a Cluster

from qndb.distributed import ClusterManager, Node

# Initialize the cluster manager
cluster = ClusterManager(
    cluster_name="global_database",
    config_file="/etc/quantumdb/cluster.yaml"
)

# Add nodes to the cluster
cluster.add_node(Node(
    id="node1",
    hostname="quantum-east.example.com",
    port=5432,
    region="us-east",
    quantum_backend="ibm_quantum",
    qubits=127
))

cluster.add_node(Node(
    id="node2",
    hostname="quantum-west.example.com",
    port=5432,
    region="us-west",
    quantum_backend="azure_quantum",
    qubits=100
))

cluster.add_node(Node(
    id="node3",
    hostname="quantum-eu.example.com",
    port=5432,
    region="eu-central",
    quantum_backend="amazon_braket",
    qubits=110
))

# Initialize the cluster
cluster.initialize()

# Create a distributed database on the cluster
db = cluster.create_database(
    name="global_finance",
    sharding_strategy="region",
    replication_factor=2,
    consistency_level="eventual"
)

# Create tables with distribution strategy
db.execute("""
CREATE TABLE customers (
    id QUANTUM_INT(8) PRIMARY KEY,
    name TEXT,
    region TEXT,
    credit_score QUANTUM_FLOAT(8)
) WITH (
    distribution_key = 'region',
    colocation = 'transactions'
)
""")

Distributed Queries

from qndb.distributed import DistributedQuery

# Create a distributed query
query = DistributedQuery(cluster_db)

# Set the query text
query.set_query("""
SELECT
    c.region,
    COUNT(*) as customer_count,
    QUANTUM_AVG(c.credit_score) as avg_credit_score,
    SUM(t.amount) as total_transactions
FROM customers c
JOIN transactions t ON c.id = t.customer_id
WHERE t.date >= '2025-01-01'
GROUP BY c.region
""")

# Configure execution strategy
query.set_execution_strategy(
    parallelization=True,
    node_selection="region_proximity",
    result_aggregation="central",
    timeout=30  # seconds
)

# Execute the distributed query
results = query.execute()

# Check execution stats
for node_id, stats in query.get_execution_stats().items():
    print(f"Node {node_id}:")
    print(f"  Execution time: {stats.execution_time_ms} ms")
    print(f"  Records processed: {stats.records_processed}")
    print(f"  Quantum operations: {stats.quantum_operations}")

Scaling Operations

from qndb.distributed import ScalingManager

# Initialize scaling manager
scaling = ScalingManager(cluster)

# Add a new node to the cluster
new_node = scaling.add_node(
    hostname="quantum-new.example.com",
    region="ap-southeast",
    quantum_backend="google_quantum",
    qubits=150
)

# Rebalance data across all nodes
rebalance_task = scaling.rebalance(
    strategy="minimal_transfer",
    schedule="off_peak",
    max_parallel_transfers=2
)

# Monitor rebalancing progress
rebalance_task.on_progress(lambda progress:
    print(f"Rebalancing progress: {progress}%"))

# Wait for completion
rebalance_task.wait_for_completion()

# Scale down by removing an underutilized node
removal_task = scaling.remove_node(
    "node2",
    data_migration_strategy="redistribute",
    graceful_shutdown=True
)

# Get scaling recommendations
recommendations = scaling.analyze_and_recommend()
print("Scaling recommendations:")
for rec in recommendations:
    print(f"- {rec.action}: {rec.reason}")
    print(f"  Estimated impact: {rec.estimated_impact}")

Secure Storage

Quantum Encryption Setup

from qndb.security import QuantumEncryption

# Initialize quantum encryption
encryption = QuantumEncryption(db)

# Generate quantum keys using QKD (Quantum Key Distribution)
encryption.generate_quantum_keys(
    protocol="E91",  # Einstein-Podolsky-Rosen based protocol
    key_size=256,
    refresh_interval=86400  # 24 hours
)

# Encrypt specific columns
encryption.encrypt_column("customers", "credit_card_number")
encryption.encrypt_column("employees", "salary", algorithm="quantum_homomorphic")

# Enable encrypted backups
encryption.configure_encrypted_backups(
    backup_path="/backup/quantum_db/",
    schedule="daily",
    retention_days=30
)

# Test encryption security
security_report = encryption.test_security(
    attack_simulations=["brute_force", "side_channel", "quantum_computing"]
)

print(f"Encryption security level: {security_report.security_level}")
for vulnerability in security_report.vulnerabilities:
    print(f"- {vulnerability.name}: {vulnerability.risk_level}")
    print(f"  Recommendation: {vulnerability.recommendation}")

Access Control Configuration

from qndb.security import AccessControl

# Initialize access control
access = AccessControl(db)

# Define roles
access.create_role("admin", description="Full system access")
access.create_role("analyst", description="Read-only access to aggregated data")
access.create_role("user", description="Basic user operations")

# Set role permissions
access.grant_permissions("admin", [
    "ALL:*"  # All permissions on all objects
])

access.grant_permissions("analyst", [
    "SELECT:*",  # Select on all tables
    "EXECUTE:quantum_analytics_functions",  # Execute specific functions
    "DENY:customers.credit_card_number"  # Explicitly deny access to sensitive data
])

access.grant_permissions("user", [
    "SELECT:public.*",  # Select on public schema
    "INSERT,UPDATE,DELETE:customers WHERE owner_id = CURRENT_USER_ID"  # Row-level security
])

# Create users
access.create_user("alice", role="admin",
                   quantum_authentication=True)
access.create_user("bob", role="analyst")
access.create_user("charlie", role="user")

# Test access
test_results = access.test_permissions("bob", "SELECT customers.credit_score")
print(f"Permission test: {'Allowed' if test_results.allowed else 'Denied'}")
print(f"Reason: {test_results.reason}")

Secure Multi-party Computation

from qndb.security import SecureMultiPartyComputation

# Initialize secure MPC
mpc = SecureMultiPartyComputation()

# Define participants
mpc.add_participant("bank_a", endpoint="bank-a.example.com:5432")
mpc.add_participant("bank_b", endpoint="bank-b.example.com:5432")
mpc.add_participant("regulator", endpoint="regulator.example.com:5432")

# Define the computation (average loan risk without revealing individual portfolios)
mpc.define_computation("""
SECURE FUNCTION calculate_system_risk() RETURNS QUANTUM_FLOAT AS
BEGIN
    DECLARE avg_risk QUANTUM_FLOAT;

    -- Each bank contributes their data but cannot see others' data
    SELECT QUANTUM_SECURE_AVG(risk_score)
    INTO avg_risk
    FROM (
        SELECT risk_score FROM bank_a.loan_portfolio
        UNION ALL
        SELECT risk_score FROM bank_b.loan_portfolio
    ) all_loans;

    RETURN avg_risk;
END;
""")

# Execute the secure computation
result = mpc.execute_computation(
    "calculate_system_risk",
    min_participants=3,  # Require all participants
    timeout=60  # seconds
)

# Check the results
print(f"System-wide risk score: {result.value}")
print(f"Confidence interval: {result.confidence_interval}")
print(f"Privacy guarantee: {result.privacy_guarantee}")

Integration Examples

Classical Database Integration

from qndb.integration import ClassicalConnector

# Connect to classical PostgreSQL database
classical_db = ClassicalConnector.connect(
    system="postgresql",
    host="classical-db.example.com",
    port=5432,
    database="finance",
    username="integration_user",
    password="*****"
)

# Import schema from classical database
imported_tables = db.import_schema(
    classical_db,
    tables=["customers", "accounts", "transactions"],
    convert_types=True  # Automatically convert classical types to quantum types
)

# Set up federated queries
db.create_foreign_table(
    name="classical_accounts",
    source=classical_db,
    remote_table="accounts"
)

# Set up hybrid query capability
db.enable_hybrid_query(classical_db)

# Execute a hybrid query using both classical and quantum processing
results = db.execute("""
SELECT
    c.id, c.name, a.balance,
    QUANTUM_RISK_SCORE(c.behavior_vector) as risk_score
FROM classical_accounts a
JOIN quantum_database.customers c ON a.customer_id = c.id
WHERE a.account_type = 'checking'
AND QUANTUM_SIMILARITY(c.behavior_vector, ?) > 0.7
ORDER BY risk_score DESC
""", params=[
    QuantumVector([0.2, 0.1, 0.8, 0.3])  # Suspicious behavior pattern
])

Application Integration

from qndb.integration import ApplicationConnector
from fastapi import FastAPI

# Create FastAPI application
app = FastAPI(title="Quantum Financial API")

# Connect to quantum database
db_connector = ApplicationConnector(db)

# Create API endpoints using the connector
@app.get("/customers/{customer_id}")
async def get_customer(customer_id: int):
    result = db_connector.execute_async(
        "SELECT * FROM customers WHERE id = ?",
        params=[customer_id]
    )
    return await result.to_dict()

@app.post("/risk-analysis")
async def analyze_risk(customer_ids: list[int]):
    # Use quantum processing for risk analysis
    risk_analysis = await db_connector.execute_async("""
        SELECT
            customer_id,
            QUANTUM_RISK_SCORE(financial_data) as risk_score,
            QUANTUM_FRAUD_PROBABILITY(transaction_patterns) as fraud_prob
        FROM customer_profiles
        WHERE customer_id IN (?)
    """, params=[customer_ids])

    return {"results": await risk_analysis.to_list()}

# Start the API server
    if __name__ == "__main__":
        import uvicorn
        uvicorn.run(app, host="0.0.0.0", port=8000)


import React, { useState, useEffect } from 'react';
import axios from 'axios';
import { QuantumRiskChart } from './QuantumRiskChart';

const QuantumDashboard = () => {
  const [customers, setCustomers] = useState([]);
  const [riskAnalysis, setRiskAnalysis] = useState(null);
  const [loading, setLoading] = useState(false);

  useEffect(() => {
    // Load customers on component mount
    axios.get('/api/customers')
      .then(response => setCustomers(response.data))
      .catch(error => console.error('Error loading customers:', error));
  }, []);

  const runRiskAnalysis = async () => {
    try {
      setLoading(true);
      const customerIds = customers.map(c => c.id);
      const response = await axios.post('/api/risk-analysis', { customer_ids: customerIds });
      setRiskAnalysis(response.data.results);
    } catch (error) {
      console.error('Error in risk analysis:', error);
    } finally {
      setLoading(false);
    }
  };

  return (
    <div className="quantum-dashboard">
      <h1>Quantum Financial Analysis</h1>
      <button onClick={runRiskAnalysis} disabled={loading}>
        {loading ? 'Processing on Quantum Computer...' : 'Run Risk Analysis'}
      </button>

      {riskAnalysis && (
        <>
          <h2>Risk Analysis Results</h2>
          <QuantumRiskChart data={riskAnalysis} />
          <table>
            <thead>
              <tr>
                <th>Customer ID</th>
                <th>Risk Score</th>
                <th>Fraud Probability</th>
                <th>Action</th>
              </tr>
            </thead>
            <tbody>
              {riskAnalysis.map(item => (
                <tr key={item.customer_id}>
                  <td>{item.customer_id}</td>
                  <td>{item.risk_score.toFixed(2)}</td>
                  <td>{(item.fraud_prob * 100).toFixed(2)}%</td>
                  <td>
                    {item.fraud_prob > 0.7 ? 'Investigate' :
                     item.fraud_prob > 0.3 ? 'Monitor' : 'Normal'}
                  </td>
                </tr>
              ))}
            </tbody>
          </table>
        </>
      )}
    </div>
  );
};

export default QuantumDashboard;

Analytics Integration

# Example: Integrating with quantum state visualization tools
from core.measurement import readout
from utilities.visualization import state_visualizer

def analyze_quantum_state(circuit_results, threshold=0.01):
    """
    Analyze and visualize quantum states from circuit execution

    Args:
        circuit_results: Results from quantum circuit execution
        threshold: Probability threshold for significant states

    Returns:
        Dict containing state analysis data
    """
    # Extract significant states above threshold
    significant_states = readout.filter_by_probability(circuit_results, threshold)

    # Generate visualization data
    viz_data = state_visualizer.generate_bloch_sphere(significant_states)

    # Prepare analytics payload
    analytics_data = {
        'state_distribution': significant_states,
        'visualization': viz_data,
        'entanglement_metrics': readout.calculate_entanglement_metrics(circuit_results),
        'coherence_stats': readout.estimate_coherence_time(circuit_results)
    }

    return analytics_data

Performance Metrics Collection

# Example: Performance data collection for analytics platforms
from middleware.scheduler import JobMetrics
from utilities.benchmarking import PerformanceCollector
import json

class AnalyticsCollector:
    def __init__(self, analytics_endpoint=None):
        self.collector = PerformanceCollector()
        self.analytics_endpoint = analytics_endpoint

    def record_operation(self, operation_type, circuit_data, execution_results):
        """
        Record quantum operation metrics for analytics

        Args:
            operation_type: Type of quantum operation (search, join, etc.)
            circuit_data: Circuit configuration and parameters
            execution_results: Results and timing information
        """
        metrics = JobMetrics.from_execution(execution_results)

        performance_data = {
            'operation_type': operation_type,
            'circuit_depth': circuit_data.depth,
            'qubit_count': circuit_data.qubit_count,
            'gate_counts': circuit_data.gate_histogram,
            'execution_time_ms': metrics.execution_time_ms,
            'decoherence_events': metrics.decoherence_count,
            'error_rate': metrics.error_rate,
            'success_probability': metrics.success_probability
        }

        # Store metrics locally
        self.collector.add_metrics(performance_data)

        # Send to external analytics platform if configured
        if self.analytics_endpoint:
            self._send_to_analytics(performance_data)

    def _send_to_analytics(self, data):
        """Send metrics to external analytics platform"""
        headers = {'Content-Type': 'application/json'}
        payload = json.dumps(data)
        # Implementation for sending to external analytics platform

Real-time Dashboard Integration

# Example: Real-time dashboard data streaming
from distributed.node_manager import ClusterStatus
import asyncio
import websockets

class DashboardStreamer:
    def __init__(self, websocket_url, update_interval=1.0):
        self.websocket_url = websocket_url
        self.update_interval = update_interval
        self.running = False

    async def start_streaming(self):
        """Start streaming analytics data to dashboard"""
        self.running = True
        async with websockets.connect(self.websocket_url) as websocket:
            while self.running:
                # Collect current system metrics
                metrics = self._collect_current_metrics()

                # Send metrics to dashboard
                await websocket.send(json.dumps(metrics))

                # Wait for next update interval
                await asyncio.sleep(self.update_interval)

    def _collect_current_metrics(self):
        """Collect current system metrics for dashboard"""
        cluster_status = ClusterStatus.get_current()

        return {
            'timestamp': time.time(),
            'active_nodes': cluster_status.active_node_count,
            'total_qubits': cluster_status.total_qubits,
            'available_qubits': cluster_status.available_qubits,
            'job_queue_depth': cluster_status.pending_job_count,
            'active_queries': cluster_status.active_query_count,
            'error_rates': cluster_status.error_rates_by_node,
            'resource_utilization': cluster_status.resource_utilization
        }

    def stop_streaming(self):
        """Stop streaming analytics data"""
        self.running = False

Integration with Classical Analytics Platforms

Exporting to Data Warehouses

# Example: Data warehouse integration
from utilities.config import DatabaseConfig
import pandas as pd
import sqlalchemy

class DataWarehouseExporter:
    def __init__(self, config_file='warehouse_config.json'):
        self.config = DatabaseConfig(config_file)
        self.engine = self._create_connection()

    def _create_connection(self):
        """Create connection to data warehouse"""
        connection_string = (
            f"{self.config.db_type}://{self.config.username}:{self.config.password}"
            f"@{self.config.host}:{self.config.port}/{self.config.database}"
        )
        return sqlalchemy.create_engine(connection_string)

    def export_performance_data(self, performance_collector, table_name='quantum_performance'):
        """
        Export performance data to data warehouse

        Args:
            performance_collector: PerformanceCollector instance with data
            table_name: Target table name in data warehouse
        """
        # Convert collector data to DataFrame
        df = pd.DataFrame(performance_collector.get_all_metrics())

        # Write to data warehouse
        df.to_sql(
            name=table_name,
            con=self.engine,
            if_exists='append',
            index=False
        )

        return len(df)

Machine Learning Integration

# Example: Preparing data for ML-based optimizations
from middleware.optimizer import CircuitOptimizer
import numpy as np
from sklearn.ensemble import RandomForestRegressor

class OptimizationModelTrainer:
    def __init__(self, performance_data):
        self.performance_data = performance_data
        self.model = None

    def prepare_training_data(self):
        """Prepare training data for optimization model"""
        # Extract features and target
        features = []
        targets = []

        for entry in self.performance_data:
            # Extract features from circuit and operation data
            feature_vector = [
                entry['qubit_count'],
                entry['circuit_depth'],
                entry['gate_counts'].get('h', 0),
                entry['gate_counts'].get('cx', 0),
                entry['gate_counts'].get('t', 0),
                entry['data_size'],
                # Additional features
            ]

            # Target is the execution time
            target = entry['execution_time_ms']

            features.append(feature_vector)
            targets.append(target)

        return np.array(features), np.array(targets)

    def train_model(self):
        """Train optimization model"""
        X, y = self.prepare_training_data()

        # Initialize and train model
        self.model = RandomForestRegressor(n_estimators=100, random_state=42)
        self.model.fit(X, y)

        return self.model

    def optimize_circuit(self, circuit_params):
        """Use model to predict optimal circuit configuration"""
        if self.model is None:
            raise ValueError("Model not trained yet")

        # Generate potential configurations
        potential_configs = CircuitOptimizer.generate_alternative_configurations(circuit_params)

        # Convert configurations to feature vectors
        feature_vectors = []
        for config in potential_configs:
            feature_vector = [
                config.qubit_count,
                config.circuit_depth,
                config.gate_counts.get('h', 0),
                config.gate_counts.get('cx', 0),
                config.gate_counts.get('t', 0),
                config.data_size,
                # Additional features
            ]
            feature_vectors.append(feature_vector)

        # Predict execution times
        predicted_times = self.model.predict(np.array(feature_vectors))

        # Find configuration with minimum predicted time
        best_idx = np.argmin(predicted_times)

        return potential_configs[best_idx]

Custom Analytics Plugins

Plugin System

# Example: Plugin system for custom analytics
from abc import ABC, abstractmethod

class AnalyticsPlugin(ABC):
    """Base class for analytics plugins"""

    @abstractmethod
    def process_data(self, quantum_data):
        """Process quantum data for analytics"""
        pass

    @abstractmethod
    def get_visualization(self):
        """Get visualization data"""
        pass

class PluginManager:
    def __init__(self):
        self.plugins = {}

    def register_plugin(self, name, plugin_instance):
        """Register a new analytics plugin"""
        if not isinstance(plugin_instance, AnalyticsPlugin):
            raise TypeError("Plugin must be an instance of AnalyticsPlugin")

        self.plugins[name] = plugin_instance

    def get_plugin(self, name):
        """Get a registered plugin by name"""
        return self.plugins.get(name)

    def process_with_all_plugins(self, quantum_data):
        """Process data with all registered plugins"""
        results = {}

        for name, plugin in self.plugins.items():
            results[name] = plugin.process_data(quantum_data)

        return results

Example Custom Plugin

# Example: Custom analytics plugin for error correlation
class ErrorCorrelationPlugin(AnalyticsPlugin):
    def __init__(self):
        self.error_data = []
        self.correlation_matrix = None

    def process_data(self, quantum_data):
        """Analyze error correlations in quantum operations"""
        error_metrics = self._extract_error_metrics(quantum_data)
        self.error_data.append(error_metrics)

        # Calculate correlation matrix if we have enough data
        if len(self.error_data) >= 5:
            self._calculate_correlation_matrix()

        return {
            'error_metrics': error_metrics,
            'correlation_matrix': self.correlation_matrix
        }

    def _extract_error_metrics(self, quantum_data):
        """Extract error metrics from quantum operation data"""
        # Implementation for extracting error metrics
        return {
            'bit_flip_rate': quantum_data.get('error_rates', {}).get('bit_flip', 0),
            'phase_flip_rate': quantum_data.get('error_rates', {}).get('phase_flip', 0),
            'readout_error': quantum_data.get('error_rates', {}).get('readout', 0),
            'gate_error_h': quantum_data.get('error_rates', {}).get('gate_h', 0),
            'gate_error_cx': quantum_data.get('error_rates', {}).get('gate_cx', 0),
        }

    def _calculate_correlation_matrix(self):
        """Calculate correlation matrix between different error types"""
        # Convert to DataFrame for correlation calculation
        df = pd.DataFrame(self.error_data)
        self.correlation_matrix = df.corr().to_dict()

    def get_visualization(self):
        """Get visualization of error correlations"""
        if self.correlation_matrix is None:
            return None

        # Implementation for visualization generation
        visualization_data = {
            'type': 'heatmap',
            'data': self.correlation_matrix,
            'layout': {
                'title': 'Error Correlation Matrix',
                'xaxis': {'title': 'Error Types'},
                'yaxis': {'title': 'Error Types'}
            }
        }

        return visualization_data

Configuration

analytics_config.json

{
  "enabled": true,
  "collection_interval_ms": 500,
  "storage": {
    "local_path": "/var/log/qndb/analytics",
    "retention_days": 30
  },
  "external_endpoints": [
    {
      "name": "prometheus",
      "url": "http://prometheus:9090/api/v1/write",
      "auth_token": "prometheus_token",
      "enabled": true
    },
    {
      "name": "grafana",
      "url": "http://grafana:3000/api/dashboards",
      "auth_token": "grafana_token",
      "enabled": true
    }
  ],
  "data_warehouse": {
    "export_schedule": "0 * * * *",
    "connection": {
      "type": "postgresql",
      "host": "warehouse.example.com",
      "port": 5432,
      "database": "quantum_analytics",
      "username": "analytics_user"
    }
  },
  "plugins": [
    {
      "name": "error_correlation",
      "class": "ErrorCorrelationPlugin",
      "enabled": true,
      "config": {
        "min_data_points": 5
      }
    },
    {
      "name": "resource_optimizer",
      "class": "ResourceOptimizerPlugin",
      "enabled": true,
      "config": {
        "update_interval": 3600
      }
    }
  ]
}

Usage Examples

Basic Analytics Integration

# Example: Basic usage of analytics integration
from core.quantum_engine import QuantumEngine
from utilities.analytics import AnalyticsCollector

# Initialize components
engine = QuantumEngine()
analytics = AnalyticsCollector()

# Register analytics with engine
engine.register_analytics(analytics)

# Run quantum operation with analytics
results = engine.run_search_operation(
    data_size=1024,
    search_key="example_key",
    circuit_optimization_level=2
)

# Access analytics data
performance_metrics = analytics.collector.get_latest_metrics()
print(f"Operation completed in {performance_metrics['execution_time_ms']}ms")
print(f"Circuit depth: {performance_metrics['circuit_depth']}")
print(f"Error rate: {performance_metrics['error_rate']:.4f}")

# Export analytics to data warehouse
from utilities.analytics import DataWarehouseExporter
exporter = DataWarehouseExporter()
exported_rows = exporter.export_performance_data(analytics.collector)
print(f"Exported {exported_rows} performance records to data warehouse")

Advanced Analytics Workflow

# Example: Advanced analytics workflow
from core.quantum_engine import QuantumEngine
from utilities.analytics import AnalyticsCollector, DashboardStreamer
from utilities.analytics.plugins import ErrorCorrelationPlugin, ResourceOptimizerPlugin
import asyncio

async def run_analytics_workflow():
    # Initialize components
    engine = QuantumEngine()
    analytics = AnalyticsCollector()

    # Set up plugins
    plugin_manager = PluginManager()
    plugin_manager.register_plugin('error_correlation', ErrorCorrelationPlugin())
    plugin_manager.register_plugin('resource_optimizer', ResourceOptimizerPlugin())

    # Register analytics with engine
    engine.register_analytics(analytics)

    # Start dashboard streaming in background
    dashboard = DashboardStreamer(websocket_url="ws://dashboard:8080/stream")
    stream_task = asyncio.create_task(dashboard.start_streaming())

    try:
        # Run a sequence of operations
        for i in range(10):
            print(f"Running operation {i+1}/10...")

            # Execute quantum operation
            results = engine.run_search_operation(
                data_size=1024 * (i + 1),
                search_key=f"test_key_{i}",
                circuit_optimization_level=2
            )

            # Process with plugins
            plugin_results = plugin_manager.process_with_all_plugins({
                'operation_results': results,
                'metrics': analytics.collector.get_latest_metrics()
            })

            # Use plugin insights for optimization
            if 'resource_optimizer' in plugin_results:
                optimization_suggestions = plugin_results['resource_optimizer'].get('suggestions', [])
                if optimization_suggestions:
                    print(f"Optimization suggestion: {optimization_suggestions[0]}")

            # Pause between operations
            await asyncio.sleep(2)

    finally:
        # Clean up
        dashboard.stop_streaming()
        await stream_task

# Run the workflow
asyncio.run(run_analytics_workflow())

Performance Optimization

Our quantum database system employs several advanced optimization techniques to maximize performance across quantum and classical systems.

Query Optimization Techniques

The middleware/optimizer.py component provides intelligent query optimization for quantum operations:

Example optimization for a quantum search operation:

from middleware.optimizer import QueryOptimizer

# Original query plan
original_circuit = generate_search_circuit(database, search_term)

# Apply quantum-specific optimizations
optimizer = QueryOptimizer()
optimized_circuit = optimizer.optimize(original_circuit)

# Circuit depth reduction of typically 30-45%
print(f"Original depth: {original_circuit.depth()}")
print(f"Optimized depth: {optimized_circuit.depth()}")

Circuit Depth Reduction

Circuit depth directly impacts quantum coherence time requirements:

Our core/storage/circuit_compiler.py implements these techniques with configurable fidelity targets.

Parallelization Strategies

The distributed/node_manager.py module enables several parallelization approaches:

Encoding Optimization

Efficient data encoding is critical for quantum database performance:

Resource Management

Qubit Allocation

The core/quantum_engine.py handles dynamic qubit allocation:

from core.quantum_engine import QubitManager

# Initialize qubit manager with hardware constraints
qm = QubitManager(topology="grid", error_rates=device_calibration_data)

# Request logical qubits for operation
allocated_qubits = qm.allocate(n_qubits=10,
                              coherence_priority=0.7,
                              connectivity_priority=0.3)

# Execute circuit
result = execute_circuit(my_circuit, allocated_qubits)

# Release resources
qm.release(allocated_qubits)

Circuit Reuse

Our middleware/cache.py implements intelligent circuit reuse:

Memory Management

The system efficiently manages both classical and quantum memory:

Benchmarking Methodologies

Performance Testing Framework

The utilities/benchmarking.py provides comprehensive performance assessment:

Comparative Analysis

Our benchmarking framework includes tools for comparing:

Scalability Testing

We employ rigorous scalability testing:

Development Guidelines

Coding Standards

All contributors must adhere to these standards:

Style Guide

Our codebase maintains consistency through:

Documentation Standards

All code must be documented following these guidelines:

Testing Requirements

All code contributions require:

Contribution Process

Issue Tracking

We use GitHub Issues for tracking with the following process:

Pull Request Process

Contributors should follow this process:

  1. Fork and Branch: Create feature branches from develop branch
  2. Development: Implement changes with appropriate tests and documentation
  3. Local Testing: Run test suite and benchmarks locally
  4. Pull Request: Submit PR with detailed description of changes
  5. CI Validation: Automated validation through CI pipeline
  6. Code Review: Review by at least two core developers
  7. Merge: Merge to develop branch after approval

Code Review Guidelines

Reviews focus on:

Release Process

Version Numbering

We follow semantic versioning (MAJOR.MINOR.PATCH):

Release Checklist

Before each release:

  1. Comprehensive Testing: Full test suite execution on multiple platforms
  2. Performance Verification: Benchmark against previous release
  3. Documentation Update: Ensure documentation reflects current functionality
  4. Changelog Generation: Detailed list of changes since previous release
  5. API Compatibility Check: Verify backward compatibility where appropriate

Deployment Process (Not applicable till now)

Our deployment process includes:

  1. Package Generation: Creation of distribution packages
  2. Environment Validation: Testing in isolated environments
  3. Staged Rollout: Gradual deployment to production systems
  4. Monitoring: Performance and error monitoring during rollout
  5. Rollback Capability: Systems for immediate rollback if issues arise

Testing

Unit Testing

Our comprehensive unit testing framework:

# Example unit test for quantum search
import unittest
from core.operations.search import GroverSearch
from core.quantum_engine import QuantumSimulator

class QuantumSearchTest(unittest.TestCase):

    def setUp(self):
        self.simulator = QuantumSimulator(n_qubits=10)
        self.database = generate_test_database(size=1024)
        self.search_algorithm = GroverSearch(self.simulator)

    def test_exact_match_search(self):
        # Define search target known to exist in database
        target = self.database[512]

        # Execute search
        result = self.search_algorithm.search(self.database, target)

        # Verify correct result with high probability
        self.assertGreater(result.probability(512), 0.9)

    def test_nonexistent_element(self):
        # Define search target known NOT to exist
        target = "nonexistent_element"

        # Search should return near-uniform distribution
        result = self.search_algorithm.search(self.database, target)

        # Verify no strong peaks in the distribution
        probabilities = result.probabilities()
        self.assertLess(max(probabilities), 0.1)

Test Coverage

We maintain extensive test coverage:

Mock Frameworks

For testing with controlled environments:

Test Organization

Tests are organized following the project structure:

Integration Testing

Component Integration

Integration between system components is tested:

System Integration

Full system integration tests:

External Integration

Tests for integration with external systems:

Performance Testing

Load Testing

Our load testing evaluates system behavior under expected load:

Stress Testing

We conduct stress testing to identify breaking points:

Endurance Testing

Long-running tests evaluate system stability:

Security Testing

Vulnerability Scanning

Regular security assessments include:

Penetration Testing

Our security includes offensive testing:

Cryptographic Validation

Quantum cryptographic features undergo rigorous validation:

Benchmarks and Performance Data

Search Operation Performance

Quantum search performance metrics:

Classical vs. Quantum Comparison

Performance comparison with classical systems:

Scaling Characteristics

How performance scales with key factors:

Hardware Dependency Analysis

Performance variation across hardware:

Join Operation Performance

Performance by Join Type

Benchmarks for different join operations:

Data Size Impact

How join performance scales with data:

Optimization Effectiveness

Effectiveness of join optimizations:

Distributed Performance

Node Scaling Effects

Performance in multi-node environments:

Network Impact

How network characteristics affect performance:

Consensus Overhead

Costs of distributed consensus:

Hardware-Specific Benchmarks

Simulator Performance

Benchmarks on quantum simulators:

IBM Quantum Experience

Performance on IBM quantum hardware:

Google Quantum AI (No data)

Benchmarks on Google's quantum platforms:

Rigetti Quantum Cloud

Performance on Rigetti systems:

Security Considerations

Threat Model

Our security framework is built on a comprehensive threat model:

# Example threat modeling in code
from security.threat_modeling import ThreatModel

# Define system assets and components
system_model = SystemModel.from_architecture_diagram("architecture/system_overview.yaml")

# Create threat model with quantum-specific considerations
threat_model = ThreatModel(
    system_model,
    adversary_capabilities={"quantum_computing": True, "side_channel_analysis": True},
    trust_boundaries=["quantum_processor", "classical_controller", "external_client"]
)

# Generate and prioritize threats
threats = threat_model.analyze()
critical_threats = threats.filter(severity="critical")

# Output mitigation recommendations
mitigations = threat_model.generate_mitigations(critical_threats)

Attack Vectors

We actively defend against multiple attack vectors:

Asset Classification

Our security model classifies and protects assets by sensitivity:

Risk Assessment

Systematic risk evaluation and mitigation:

Quantum-Specific Security

Shor's Algorithm Implications

Our system addresses post-quantum cryptography concerns:

Quantum Side Channels

Protection against quantum-specific information leakage:

Quantum Data Security

Specialized protection for quantum data states:

Compliance Frameworks

GDPR Considerations

Alignment with GDPR requirements:

HIPAA Compliance

Healthcare data protection measures:

Financial Data Regulations

Compliance with financial regulatory requirements:

Security Best Practices

Secure Configuration

Hardened system configuration guidelines:

Authentication Hardening

Robust authentication mechanisms:

Ongoing Security Maintenance

Continuous security improvement processes:

Known Limitations and Challenges

Hardware Limitations

Current quantum hardware constraints:

Decoherence Challenges

Impact of quantum decoherence on operations:

# Example decoherence impact assessment
from utilities.benchmarking import DecoherenceAnalyzer

# Initialize analyzer with hardware characteristics
analyzer = DecoherenceAnalyzer(
    t1_times=hardware_profile.t1_times,          # Amplitude damping times
    t2_times=hardware_profile.t2_times,          # Phase damping times
    gate_durations=hardware_profile.gate_times   # Duration of each gate type
)

# Analyze circuit feasibility
circuit = quantum_database.generate_search_circuit(database_size=1024)
feasibility = analyzer.assess_circuit(circuit)

print(f"Circuit depth: {circuit.depth()}")
print(f"Estimated execution time: {feasibility.execution_time} µs")
print(f"Coherence limited fidelity: {feasibility.estimated_fidelity}")
print(f"Recommended maximum DB size: {feasibility.max_recommended_size}")

Gate Fidelity Issues

Challenges related to quantum gate operations:

Algorithmic Challenges

Limitations of current quantum algorithms:

Error Rate Management

Current approaches to error management:

Measurement Uncertainty

Dealing with the probabilistic nature of quantum measurement:

Integration Challenges

Classical System Integration

Bridging quantum and classical systems:

Performance Expectations

Setting realistic performance goals:

Skill Gap

Addressing quantum computing expertise requirements:

📄 Documentation Incomplete 😩

Keeping up with documentation is exhausting, and it's not fully complete. If you want to help, feel free to contribute! Any improvements are welcome. 🚀
